Ceiling Fan With Light

Tuya App Instructions

Download and install App

Scan the QR code below or search SmartLife to download

SmartLife

For the first use, you need to use your mobile phone number or Email address to register and log in.

Device configuration and control

1 Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);

2 Continuous ON-OFF-ON-OFF-ON Power on and off three times (power on for 2~3 seconds, power off for 5~10 seconds) to make the device enter the distribution network mode, at this time the main light source will remind you to breathe;

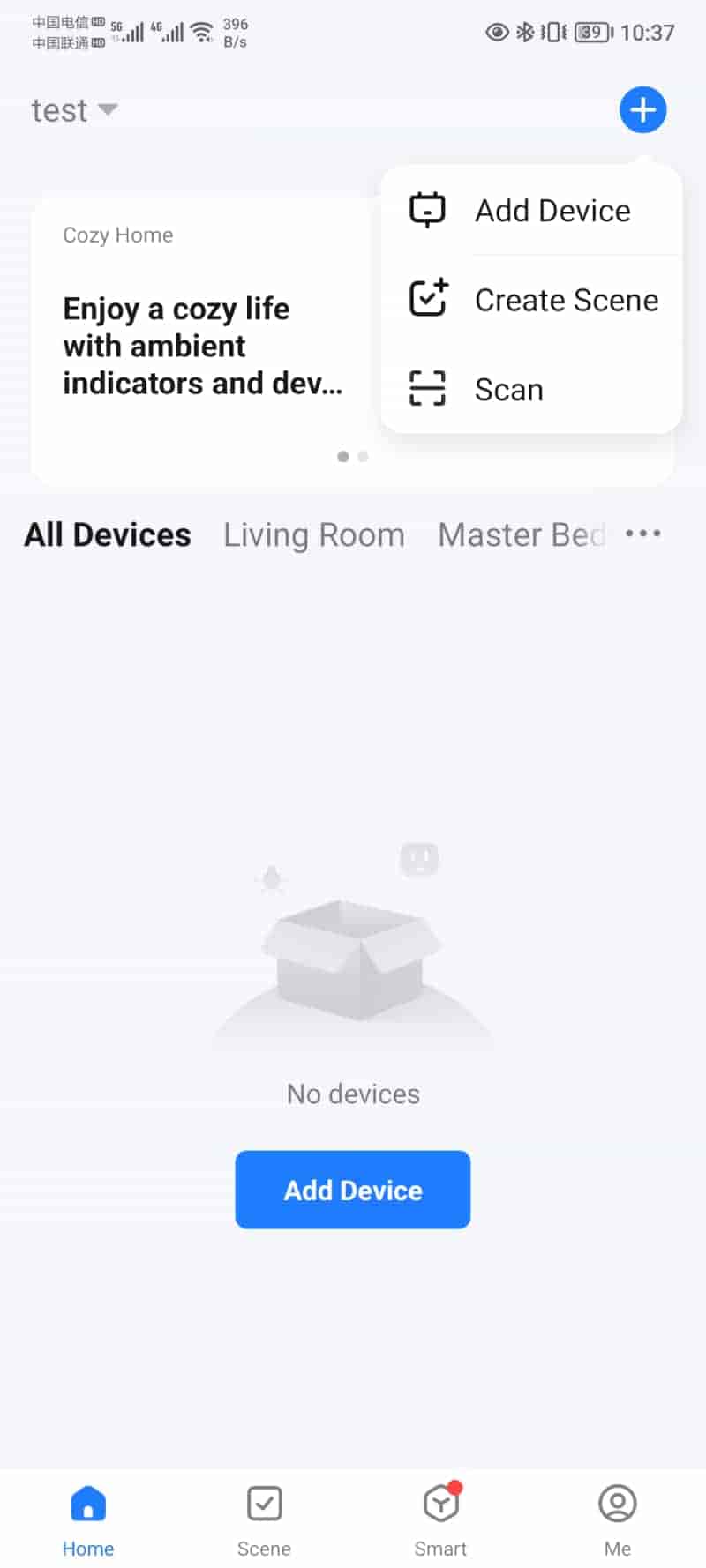

3 Open the Smart Life App, click Add Device in the upper right corner, and wait for the App to automatically search for peripheral devices;

4 After the App scans the device, click Add to bind the device;

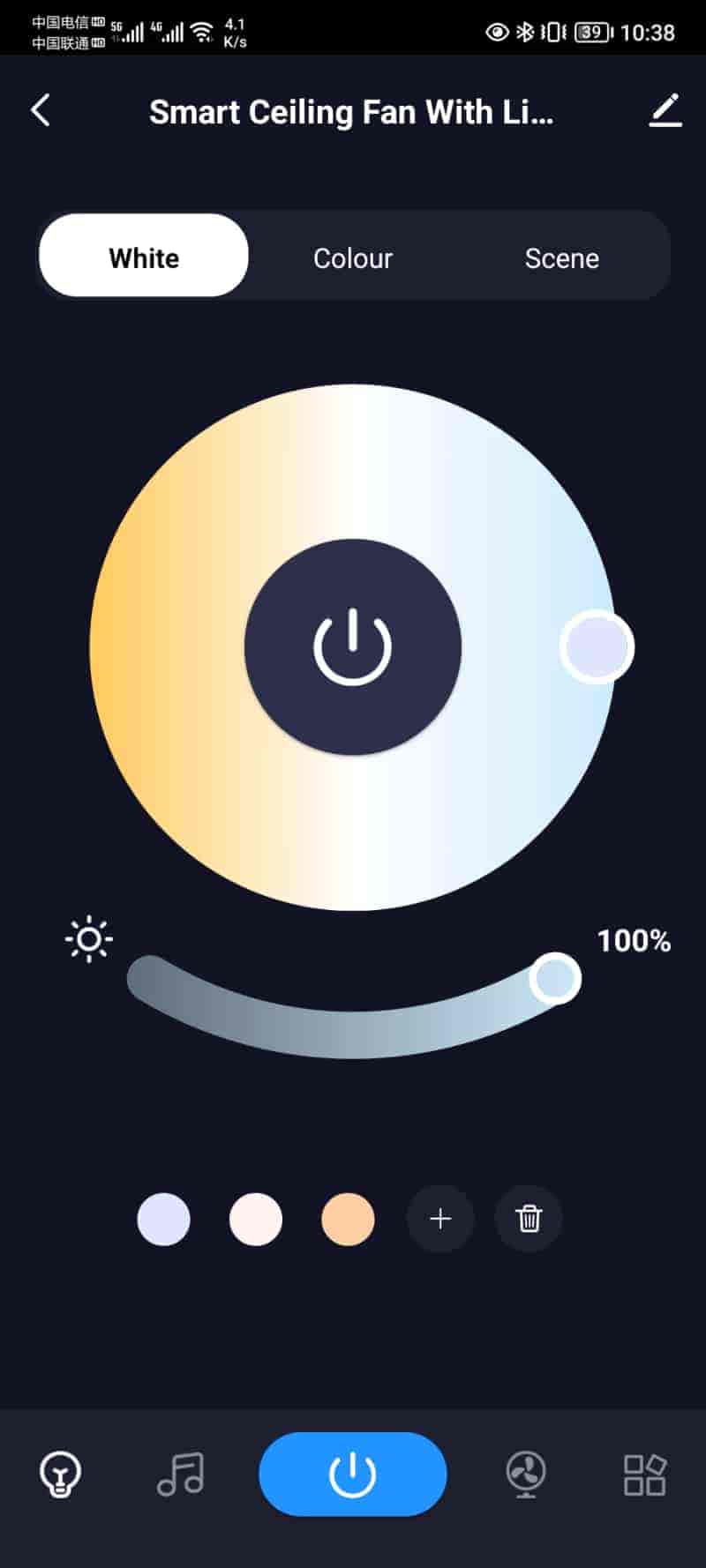

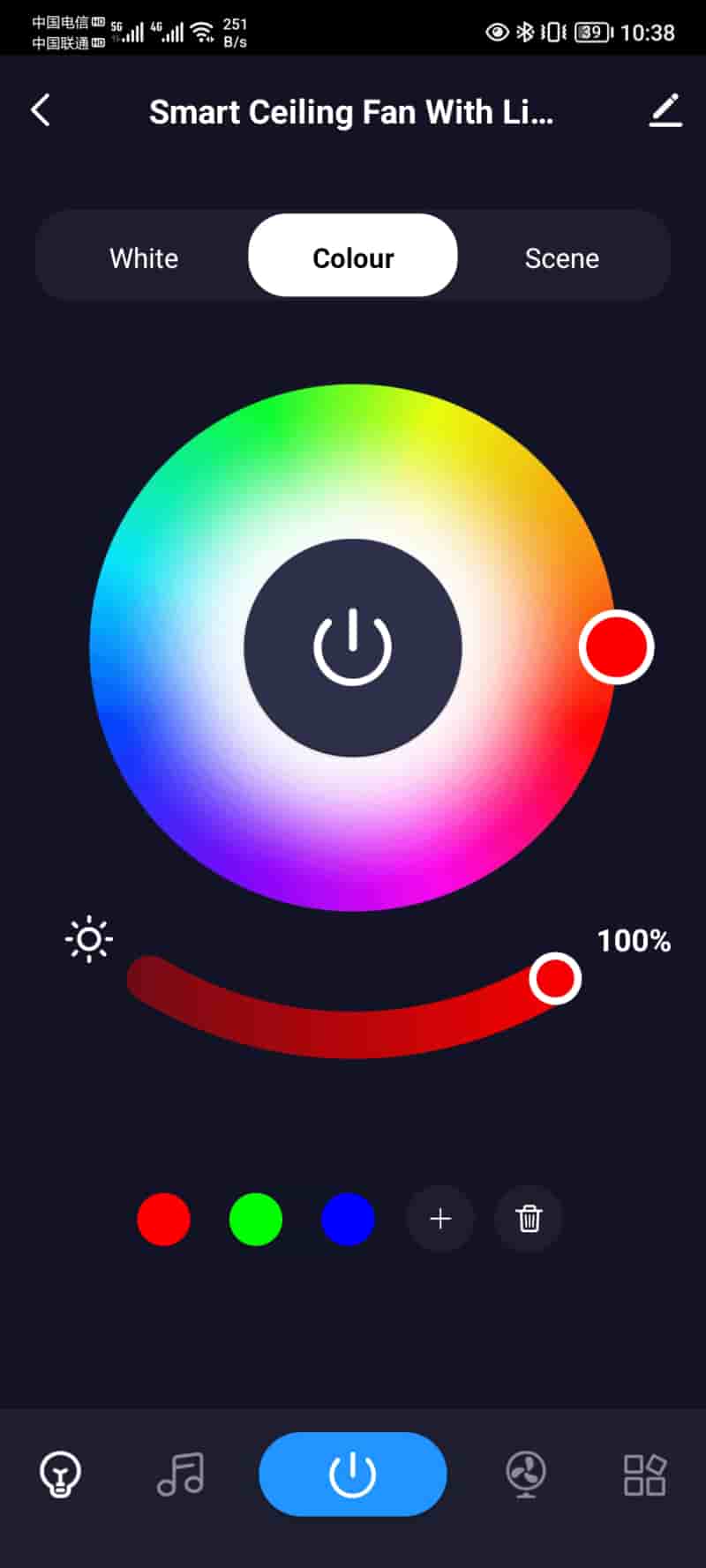

5 Click Done to enter the device control page

Remote Control Instructions

Pair code

  1. Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);
  2. Turn off the power of the device for 5~10 seconds and then turn on the power again;
  3. Long press Button 1 until the device flashes 3 times quickly, then let go;
  4. The code pairing of the remote control is successful. At this time, you can press the button to control the device.

Clear code

  1. Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);
  2. Turn off the power of the device for 5~10 seconds and then turn on the power again;
  3. Long press Button 2 until the device flashes 3 times quickly, then let go;
  4. The remote control is successfully cleared. At this time, the remote control can no longer control the device and needs to be re-paired before it can be used.

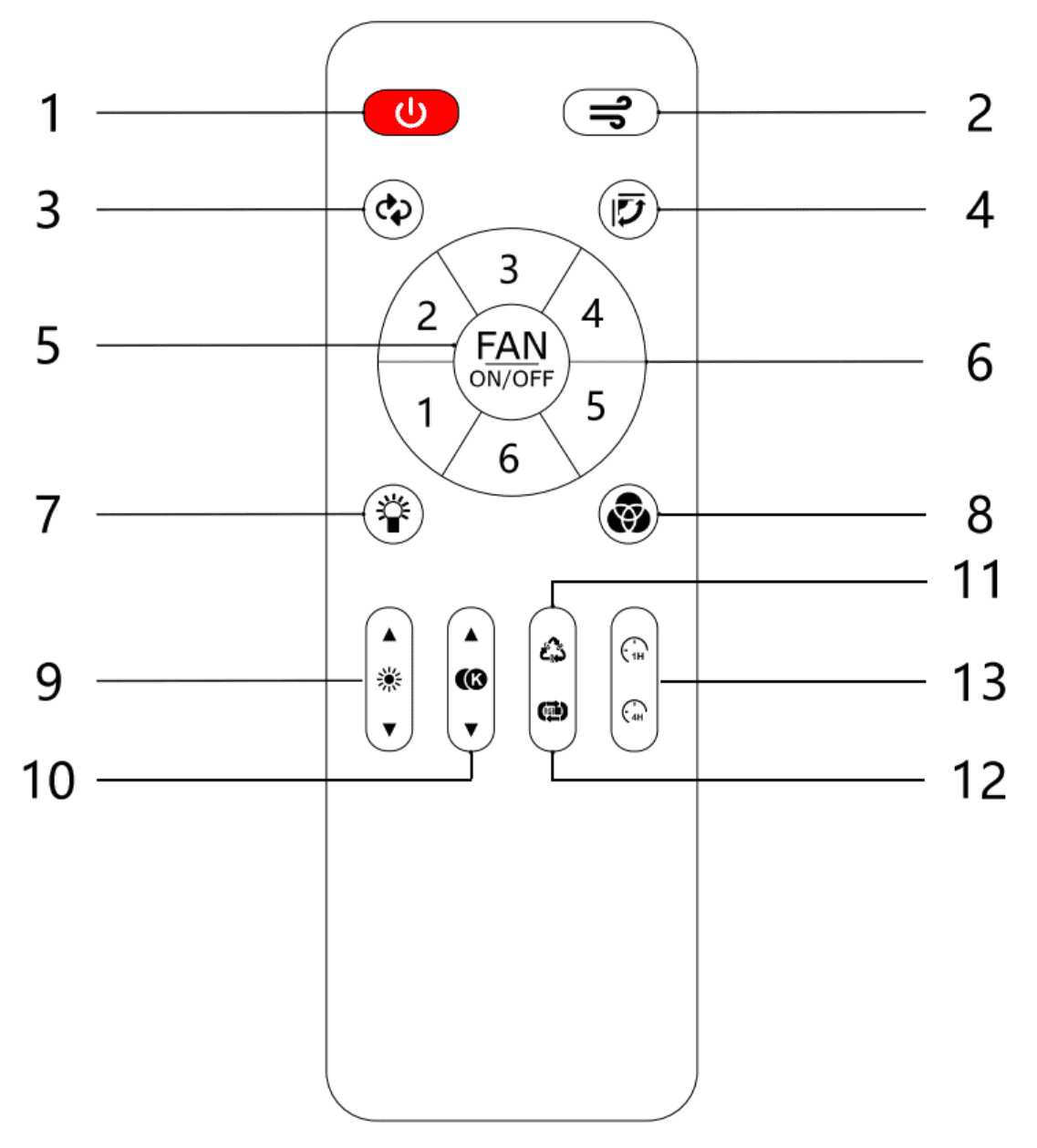

control

Button 1: All off, short press to turn off the main light & color light & fan;

Button 2: Fan mode, short press to switch between natural and comfortable wind;

Button 3: Fan direction, short press to switch between forward and reverse;

Button 4: fan rocker switch, only some models support this function;

Button 5: Fan switch, short press to turn on/off the fan, long press the button for 5 seconds to enable the device to enter the App distribution network mode;

Button 6: Fan speed, short press to adjust the speed of 6 levels

Button 7: White light switch, short press to turn on/off the white light;

Button 8: Color light switch, short press to turn on/off color light;

Button 9: Brightness addition and subtraction, short press to adjust the brightness of 10 levels, and long press to adjust the brightness steplessly;

Button 10: Addition and subtraction of temperature, short press to adjust the 10-level temperature, long press to adjust the temperature steplessly;

Button 11: Color static cycle switching (red, yellow, green, blue, purple, white);

Button 12: Color dynamic cycle switching;

Button 13: 1 hour/4 hours countdown timer off, fan & white light & color light all off at the same time;
