Ceiling Fan With Light(CW)

Tuya App Instructions

Download and install App

Scan the QR code below or search SmartLife to download

For the first use, you need to use your mobile phone number or Email address to register and log in.

Device configuration and control

1 Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);

2 Continuous ON-OFF-ON-OFF-ON Power on and off three times (power on for 2~3 seconds, power off for 5~10 seconds) to make the device enter the distribution network mode, at this time the main light source will remind you to breathe;

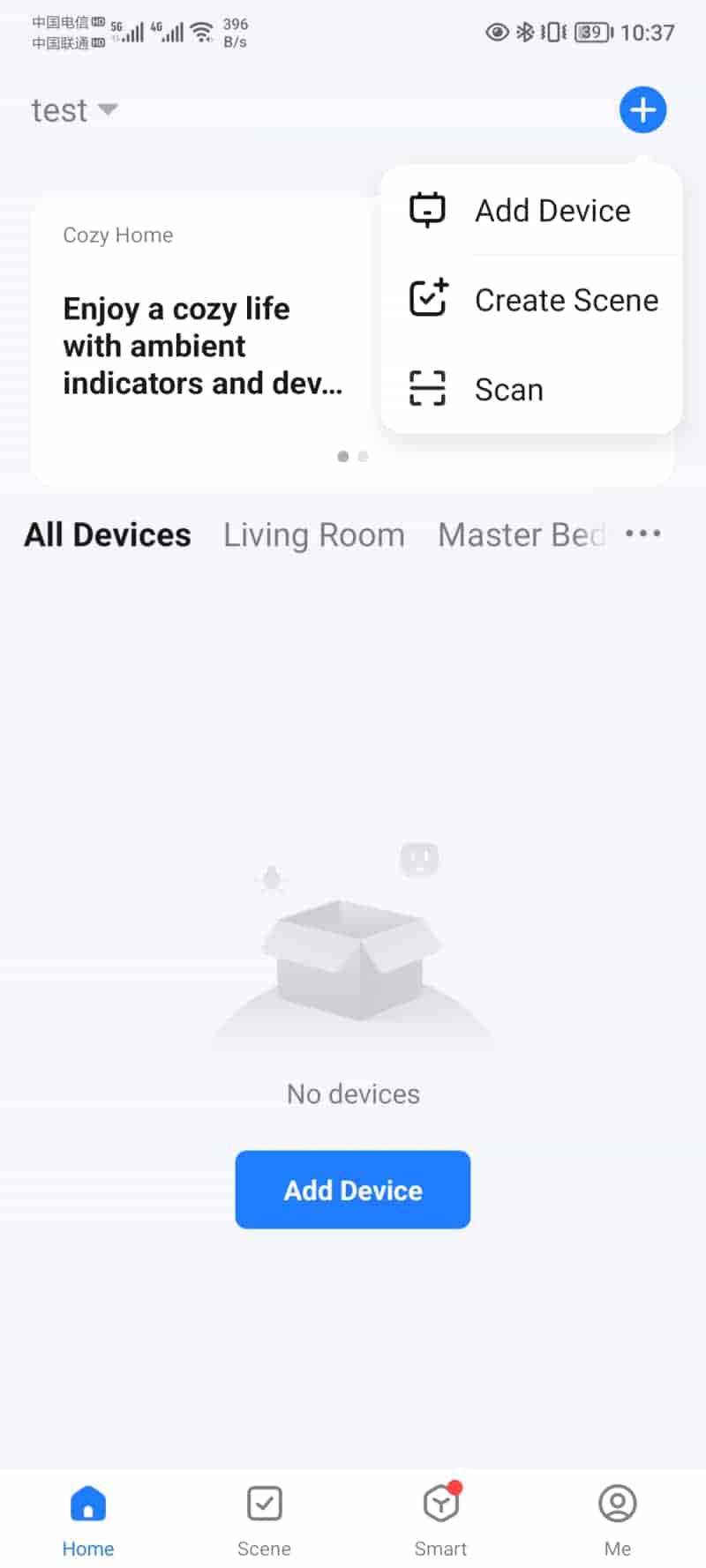

3 Open the Smart Life App, click Add Device in the upper right corner, and wait for the App to automatically search for peripheral devices;

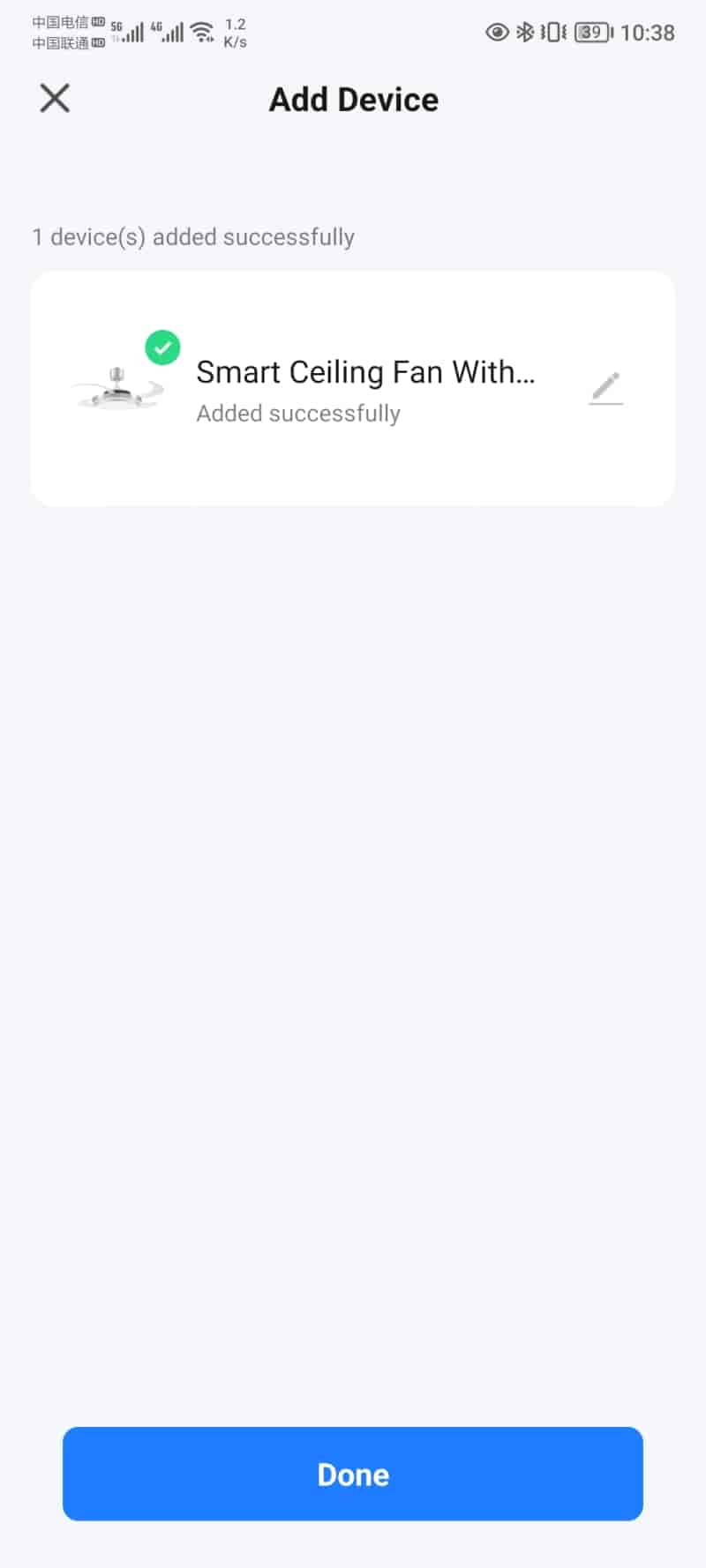

4 After the App scans the device, click Add to bind the device;

5 Click Done to enter the device control page

Remote Control Instructions

Pair code

1. Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);
2. Turn off the power of the device for 5~10 seconds and then turn on the power again;
3. Long press Button 1 until the device flashes 3 times quickly, then let go;
4. The code pairing of the remote control is successful. At this time, you can press the button to control the device.

Clear code

1. Connect the device to the power supply and confirm that the device can work normally (the light turns on slowly);
2. Turn off the power of the device for 5~10 seconds and then turn on the power again;
3. Long press Button 2 until the device flashes 3 times quickly, then let go;
4. The remote control is successfully cleared. At this time, the remote control can no longer control the device and needs to be re-paired before it can be used.

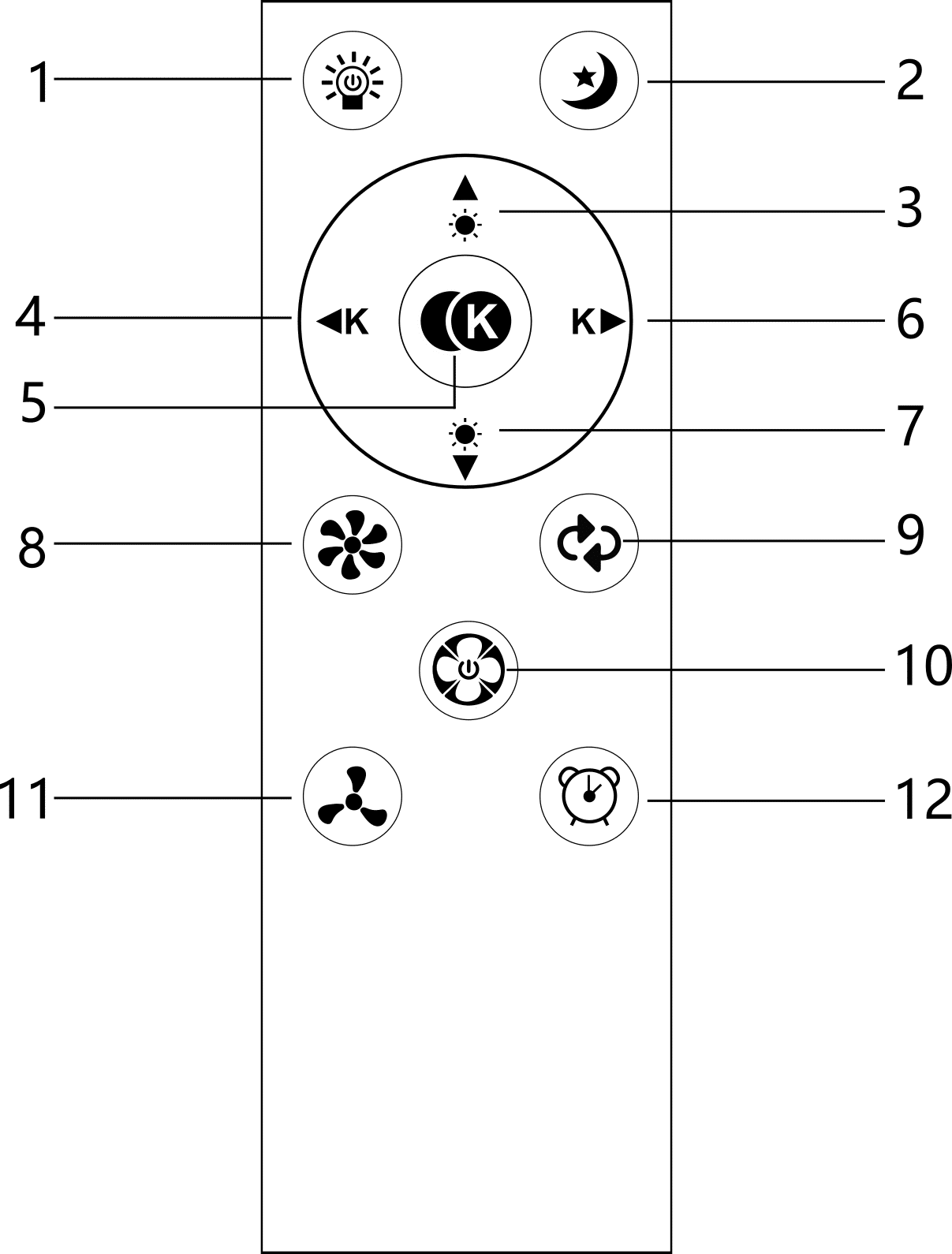

control

Button 1: White light switch, short press to turn on/off the white light;

Button 2: Night light;

Button 3: Increase the brightness, short press to adjust the brightness of 10 levels, and long press to adjust the brightness steplessly;

Button 4: Reduction the temperature, short press to adjust the 10-level temperature, long press to adjust the temperature steplessly;

Button 5: Short press to switch white light/neutral light/warm light three color temperature, Press and hold this button for 5 seconds to enable the device to enter the App distribution network mode;

Button 6: Increase the temperature, short press 10 levels of temperature adjustment, long press to stepless temperature;

Button 7: Reduction the brightness, short press for 10 levels of brightness adjustment, long press for stepless brightness adjustment;

Button 8: Increase the fan speed, short press to adjust the speed of 10 levels, and long press to adjust the speed steplessly;

Button 9: The fan is forward or reverse, after a short press, it will switch between forward rotation and reverse rotation in a cycle, long press can turn off the fan rocker(only supported by some models);

Button 10: Fan switch, short press to turn on/off the fan;

Button 11: Reduction the fan speed,, short press to adjust the wind speed to 10 gears, long press to adjust the wind speed steplessly;

Button 12: Countdown, short press and cycle switch countdown 1 hour (1 beeps)/4 hours (2 beeps)/8 hours (3 beeps), fan&white light are all turned off at the same time, if operate Button 1 or Button 10 The countdown will be invalid ;
